Injection molding is one of the most widely used methods for manufacturing plastic parts across various industries, including automotive, household appliances, electronics, and packaging. This process allows for the mass production of parts with high precision and cost efficiency.

The Injection Molding Process

In this method, raw plastic materials in granular form are fed into the injection molding machine. These materials are melted in the heating unit of the machine and transformed into a molten state. The molten material is then injected into the mold under high pressure, and after cooling, it takes the final shape of the part. This process involves the following steps:

  1. Mold Clamping: The two halves of the mold are pressed together to create a cavity for the molten material.
  2. Injection: The molten material is injected into the mold cavity under high pressure.
  3. Cooling: The molten material inside the mold cools and solidifies.
  4. Mold Opening and Ejection: Once cooled, the mold opens, and the finished part is ejected.
Injection Molding in Plastic Product Manufacturing

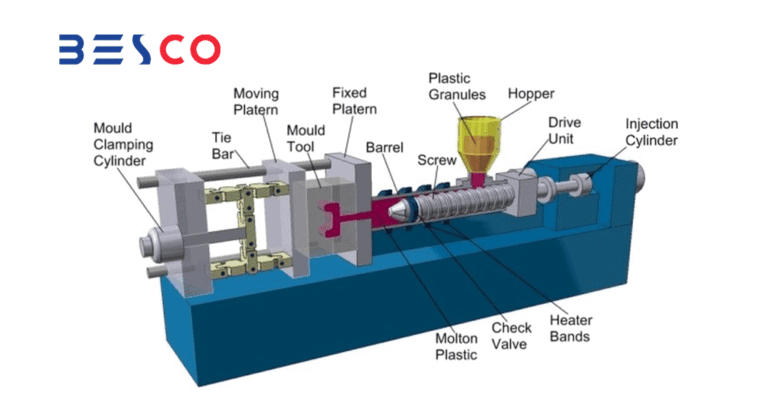

plastic injection molding process

Types of Injection Molding Machines

There are several types of injection molding machines, and selecting the right type can reduce costs and improve productivity. The main classifications are as follows:

  1. By Movement Type:
  • Hydraulic Injection Machines

These machines use hydraulic systems to apply pressure. They are characterized by their high power and capability to produce large parts. However, their energy consumption is higher compared to other types.

  • Electric Injection Machines

These machines operate using electric motors. They are ideal for producing small and intricate parts due to their high precision and lower energy consumption.

  • Hybrid Machines

These combine hydraulic and electric technologies, offering the advantages of both systems.

  1. By Material Injection Method:
  • Horizontal Injection Machines

In this type, the plastic material is injected horizontally into the mold. These machines are the most common and are suitable for producing simple and large parts.

  • Vertical Injection Machines

Here, the plastic material is injected vertically into the mold. These machines are used for small and delicate parts, such as electronic or medical components.

Components of an Injection Molding Machine

Injection molding machines consist of various components, each playing a crucial role in the manufacturing process. Key parts include:

  • Hopper: Feeds the raw plastic materials into the machine.
  • Injection Unit: Melts and injects the material into the mold under high pressure.
  • Mold: Shapes the molten material into the desired part.
  • Clamping Unit: Secures the mold during injection and cooling.

Mold Heater is another vital component, responsible for regulating the mold’s temperature to prevent cracking or deformation of the part. The machine’s hydraulic or electric control system applies the necessary pressure and facilitates the movement of mechanical components. The quality of these components directly impacts the final product’s quality.

Plastic Injection Mold

The injection mold is a critical component in the injection molding process, responsible for shaping the molten material into the final part. It consists of two main sections: the fixed half (attached to the machine) and the movable half (opens and closes). The molten plastic is injected into the mold cavity, and after cooling, the part with the desired shape and dimensions is produced.

Key Components of an Injection Mold

  1. Cavity: The space where the part’s shape is formed.
  2. Runner: Channels through which the molten material flows into the cavity.
  3. Auto cooling System: Channels for water or oil circulation that help cool the molten material quickly.
  4. Ejector Pins: Remove the finished part from the mold.

Applications of Plastic Injection Molds

Injection molds are used for high-precision mass production of plastic parts. They are commonly employed in manufacturing automotive components, toys, household appliances, electronic parts, and packaging containers. The mold’s quality directly affects the dimensional accuracy, surface finish, and lifespan of the produced parts.

Applications of Injection Molding

Injection molding is one of the most versatile methods for producing plastic parts across various industries:

  • Automotive Industry: Used for components like bumpers, dashboards, and interior parts.
  • Electronics Industry: Ideal for precise parts such as phone cases, buttons, and sockets.
  • Medical Industry: Used for manufacturing items like syringes, laboratory containers, and medical device components.
  • Packaging Industry: Commonly used for bottle caps and plastic containers.
  • Toy Industry: Produces toys with intricate details and shapes.

The versatility in raw materials and high precision make injection molding highly popular for manufacturing complex and high-quality parts.

Advantages of Injection Molding

  • Mass Production: Enables the production of large quantities of parts in a short time.
  • High Precision: Produces parts with excellent dimensional accuracy and surface quality.
  • Material Versatility: Compatible with various plastics with different properties.
  • Reduced Waste: Optimized processes minimize material wastage.
