Injection Molding Machine
An injection molding machine is a machine used to produce plastic parts by injecting molten plastic into a mold where it cools and solidifies. This process is widely used for manufacturing a variety of plastic products ranging from small components to large items.
Types of Injection Molding Machines
Hydraulic Injection Molding Machines:
Features: Uses hydraulic cylinders to generate clamping force.
Advantages: Cost-effective, robust, and suitable for producing large parts.
Disadvantages: Consumes more energy and has slower response times.
Electric Injection Molding Machines
Features: Powered by electric motors instead of hydraulic systems.
Advantages: High precision, energy-efficient, faster cycle times, and cleaner operation.
Disadvantages: Higher initial cost.
Hybrid Injection Molding Machines
Features: Combines elements of both hydraulic and electric systems.
Advantages: Offers a balance of energy efficiency, precision, and power.
Disadvantages: Can be complex and costly to maintain.
Key Components of injection molding machine
Injection Unit
Hopper: Feeds raw plastic pellets into the barrel.
Barrel: Melts the plastic pellets using a rotating screw and heaters.
Injection Assembly: Pushes the molten plastic into the mold cavity.
Clamping Unit
Fixed and Movable Platens: Hold the mold in place during the injection process.
Clamping System: Applies the necessary force to keep the mold closed.
Operation of an Injection Molding Machine
Feeding: Plastic pellets are fed from the hopper into the barrel.
Melting: The screw inside the barrel rotates and moves the plastic pellets forward while heating them to the melting point.
Injection: The molten plastic is injected into the mold cavity under high pressure.
Cooling: The plastic cools and solidifies, taking the shape of the mold.
Ejection: The mold opens, and the finished part is ejected from the machine.
Applications
Injection molding machines are used in various industries, including automotive, consumer goods, electronics, medical devices, and packaging. They are valued for their ability to produce complex and high-precision plastic parts consistently and efficiently.

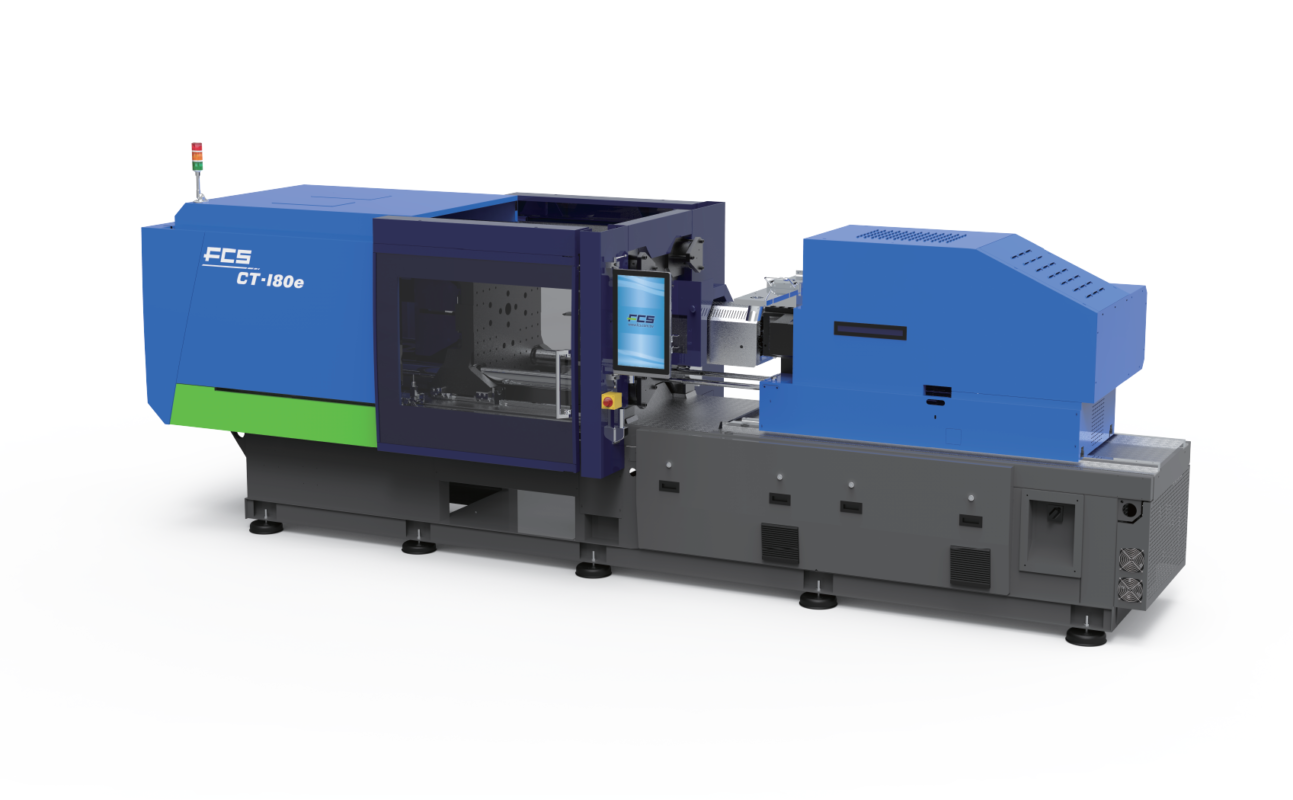

FCS CT-e
All-Electric
FCS CT-R
All-Electric Multi-Component

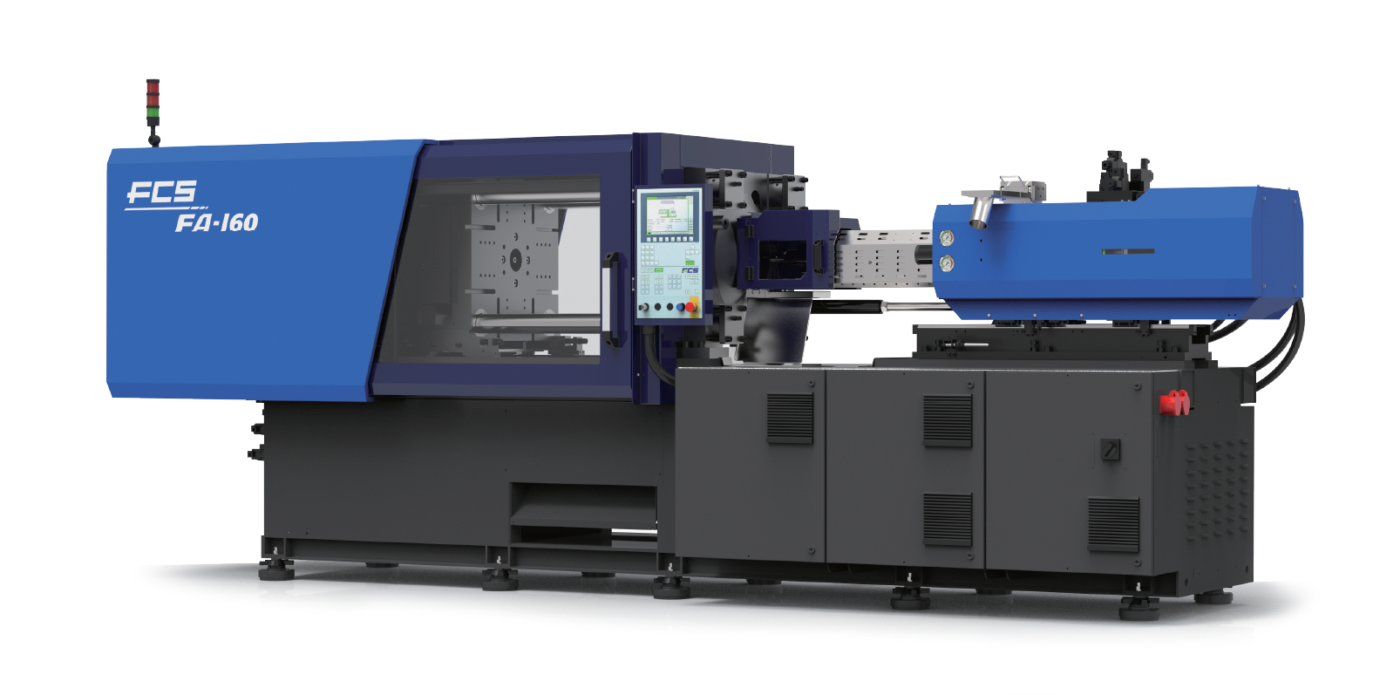

FCS FA
Advance Servo Hydraulic Toggle
FCS FB-C
Sandwich / Interval
FCS FB-R
Multi-Component
FCS FB-T
Multi-Component / Rotary Shaft
FCS GW-r
Multi-Component / Tow Platen
FCS GW-rx
Multi-Component / Tow Platen / X Type
FCS FCS HB-r
BMC
FCS HN-BMC
servo hydrolic
FCS HN-PET
PET – Preform
FCS HN-PVC
PVC
FCS FCS HN-U
Thermosetting
FCS HN
Toggle Clamping / Energy Saving
FCS HT-PET
PET – Preform
FCS HT-PVC
PVC
FCS HT
Servo Power Saving
FCS LM
Tow platen
FCS LN
Tow platen
FCS SA-C
Outward Toggle
FCS SA-H
High Speed
FCS SA-P
High Speed
FCS SA
Outward Toggle
FCS SA-H-PET
Blood Collection Tubes
TOPSTAR TE II
All Electric
TOPSTAR TH
Direct Clamping
TOPSTAR TM-II-PET
PET – Preform
TOPSTAR TM-II
Servo Power Saving
TOPSTAR TS-MP
Cell Phone Cases

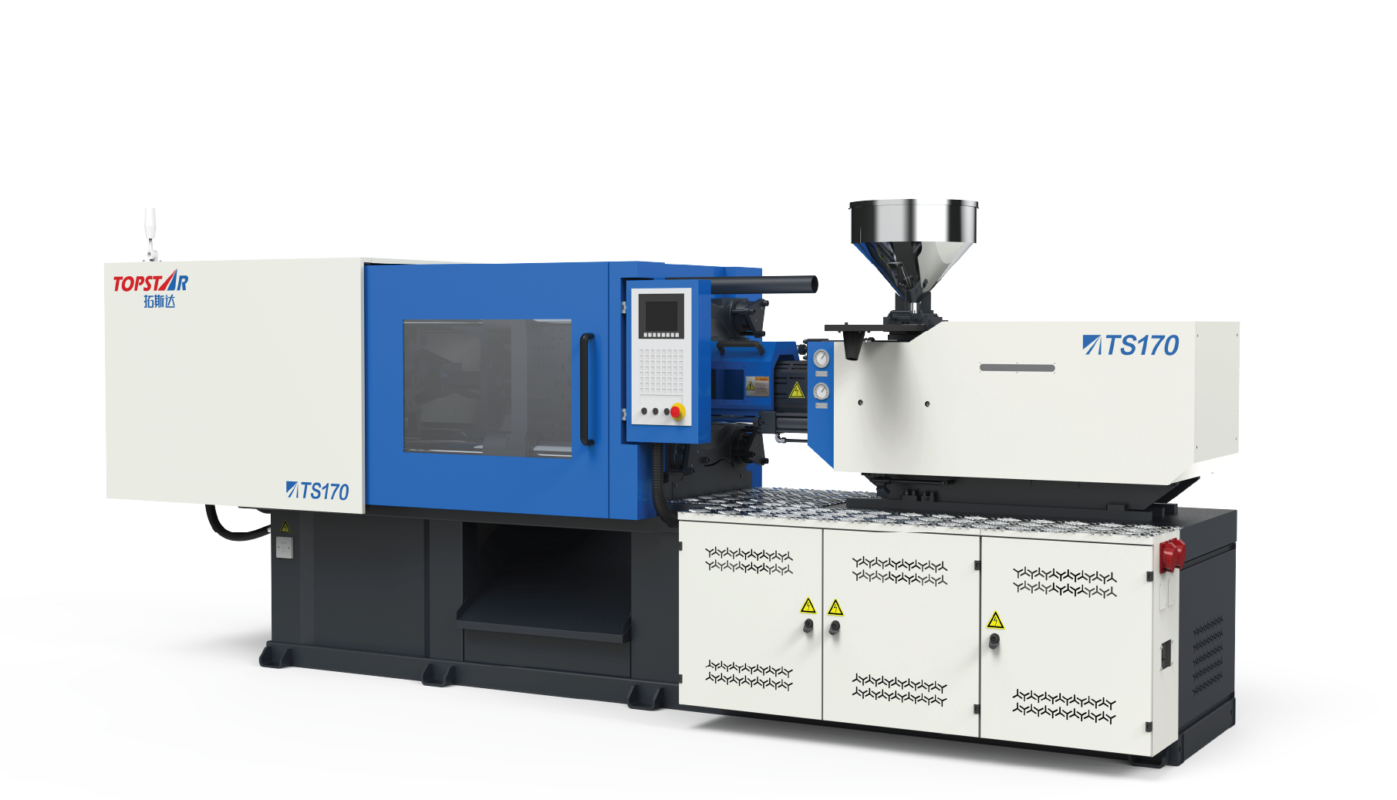

TOPSTAR TS
Servo Power Saving
Fu Chun Shin (FCS) Company:
Fu Chun Shin (FCS) is a leading manufacturer of injection molding machines based in Taiwan. Founded in 1974, FCS has grown to become the largest plastic injection molding machine manufacturer in Taiwan. They offer a wide range of machines, including hydraulic, all-electric, and hybrid models. FCS is known for its high quality products, innovative technology, and commitment to customer satisfaction. They have production bases in Taiwan, China, and other countries, and serve customers worldwide
Topstar Company:
Topstar is a global provider of smart factory solutions and injection molding machines. Founded in 2007 and headquartered in Guangdong, China, Topstar offers a variety of injection molding machines, including fully electric, hydraulic servo, and direct pressing machines. They focus on innovation, energy efficiency, and providing comprehensive support services to their customers. Topstar aims to help manufacturing enterprises achieve intelligent manufacturing through advanced automation solutions
